Automatic CNC Flat Iron busbar Bending And Forming Machine Hose Pipe Clamp Making Machine With Punching

Product Description

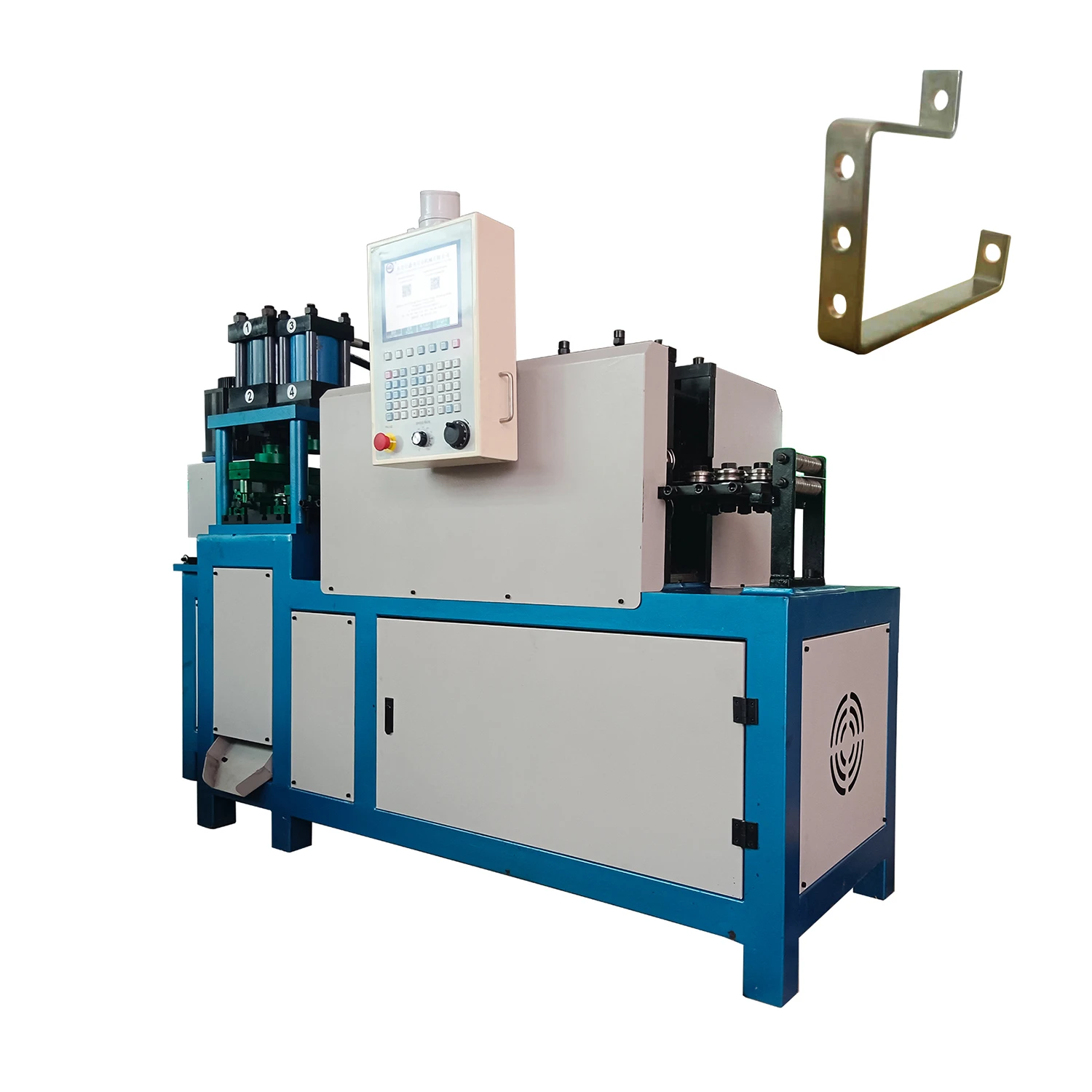

CNC Flat Hose Strip Bending Machine With Punching Holes

Servo motor feeding Hydraulic Wire Bending Machine is used to make kinds of 2d or 3d wire forms.





With the hydraulic driving power system, this machine is able to bend wires into 3d forms in high precision.



This machine is designed to deal with stainless steel,galvanized steel strip/Alumn strip , which has similar function of punch with our cylinder. Perform complicated parts with several cylinders. Maximum strip width can be 50mm and max. thickness can be 4mm.  feeding-straighten-flat punch-cutting-hole punch-engrave-multi-action bending-edge sharpen-finished product.

Key attributes

Other attributes

Place of Origin

Henan, China



Machine Type

Clamp Bending Machine



Weight (KG)

3000



Video outgoing-inspection

Provided



Machinery Test Report

Provided



Marketing Type

Ordinary Product



Warranty of core components

1 years



Core Components

PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump



Warranty

1 years



Key Selling Points

Competitive Price



Applicable Industries

Building Material Shops, Manufacturing Plant, Other



Showroom Location

None



Brand Name

WADJAY



Condition

New



Name

CNC Machine



Usage

Flat Bar/Flat Strip/Pipe Clamp



Type of Driven

Gear



Forming Rack

High strength guide pillar gantry horizontal frame



Station Pitch

250mm



Diameter of Shafts

Dia.60mm ,42CrMo (quenching and tempering)



Material of Roller

Cr12,Hardness: HRC58-60°



Main Driven Motor

37KW (Servo Motor)



Type1

Pipe Clamp Making Machine



Type2

Flat Strip Bending Machine

Technical Parameter:

Model	GT-CY-202	GT- CY -203	GT- CY -204	GT- CY -302	GT- CY -402
Flat strip (W*T)	20*2MM	20*3MM	20*4MM	30*2MM	40*2.5MM
Feeding length	300mm	300mm	300mm	300mm	300mm
Production rate	25~30pcs/min	15-20pcs/min	10-15pcs/min	10-15 pcs/min	8-10 pcs/min
Motor power	5.5kw	5.5kw	7.5kw	7.5kw	7.5kw
Size(L*W*H)	190X127X185cm	190X127X185cm	190X127X185cm	190X127X185cm	190X127X185cm
Weight (KG)	1200.0KG	1200.0KG	1200.0KG	1300.0KG	1300.0KG
